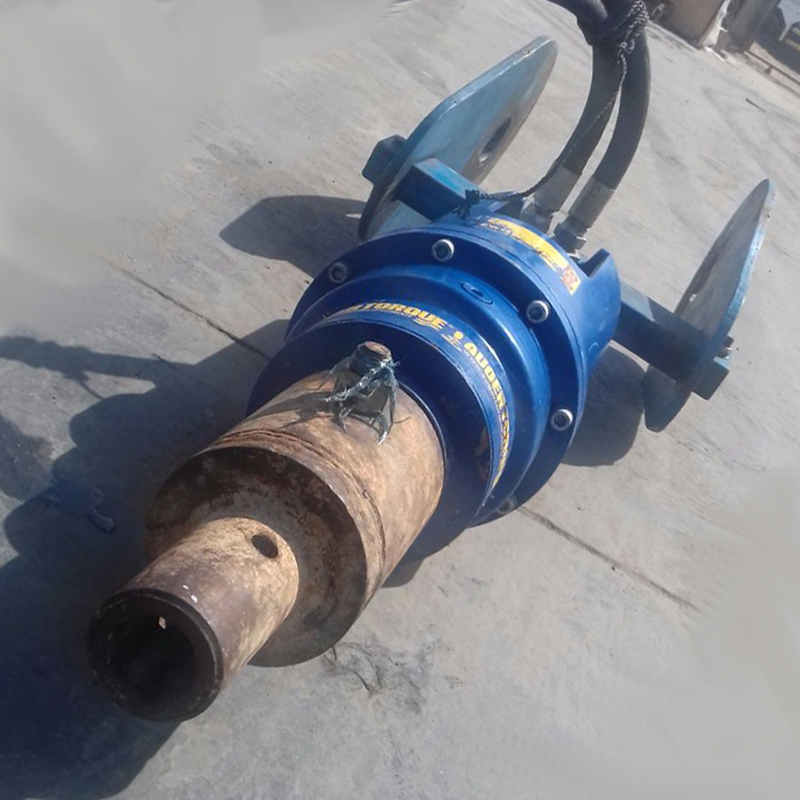

Andrews Sykes Hire Saudi offers drill heads for wellpoint drilling rigs, allowing to bore up to 7 metres deep in soft soil conditions and up to 5.2 metres in hard soil conditions. Manufactured from high grade steel, these drill heads are long-lasting and will penetrate even the hardest soils with ease.
Key Features
- Manufactured from high grade materials and precision engineered components
- Designed to withstand extreme working conditions
- High grade synthetic gear oil for extra protection and long service life
- Planetary Gearbox
- Torque amplified
- High efficiency
- Extreme durability
Environments
- Well boring
- Screw pile installations
- Foundation piles
- Earth rod drilling
Specifications
- Model
- Auger Torque 8000
- Torque range
- 2717-8152Nm
- Oil Pressure
- 80-240bar
- Speed Range
- 33-70rpm
- Size
- 780mmx ø 269mm
- Weight
- 116kg
- Drilling Depths
- 7m (Soft conditions)
- Medium conditions
- 6.6m
- Hard conditions
- 5.2m
