Download Spec Sheet
Download Spec Sheet

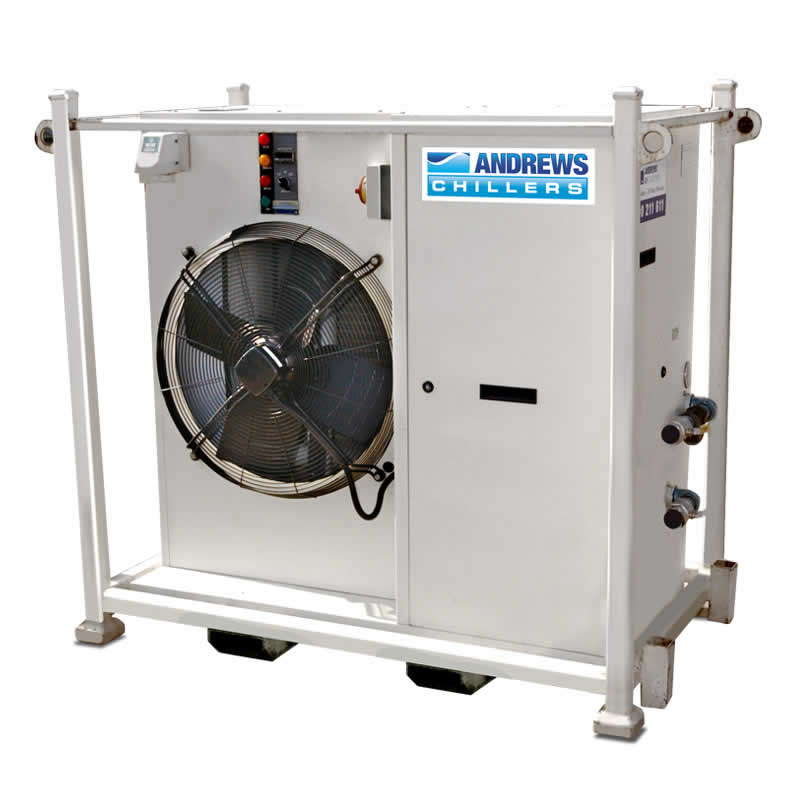

The 30kW Fluid Chiller is compact but highly efficient and can be used for a multitude of applications. It's quiet in operation and environmentally friendly - as are all Andrews Chillers. Not only can the 30kW cool it is also available with a Heat pump option, for all year round use. The 30kW chiller is compatible with all Andrews air handling units.
Key Features
- Connects to existing pipe work easily
- Quiet operation
- Quick release pipe adaptors
- Economical
- Easy installation
- Can heat and cool large areas
- Environmentally friendly
Environments
- Air conditioning
- Product storage
- Process cooling
- Low temperature applications
- Temperature control
- Disaster recovery
- Scheduled chiller maintenance
- Events and corporate hospitality
Specifications
- Water connection
- 1.25 Camlock
- Generator size
- 30 kVA
- Average power consumption
- 10 kW/hr
- Noise level (max)
- 73 dBA @ 10 metres
- Plug type
- BS4343 32 A 5 pin
- Nominal heating duty (HP version)
- 30 kW 102,360 btu
- Power supply
- 415 V 3 ph N+E 50 Hz Run 19 A/hr
- Nominal cooling duty
- 30 kW 102,360 btu
- Weight
- 350 kg
- Dimension
- 1,600 x 860 x 1,700 mm
- Control
- Automatic programmer
