GP 150M General Purpose Pump

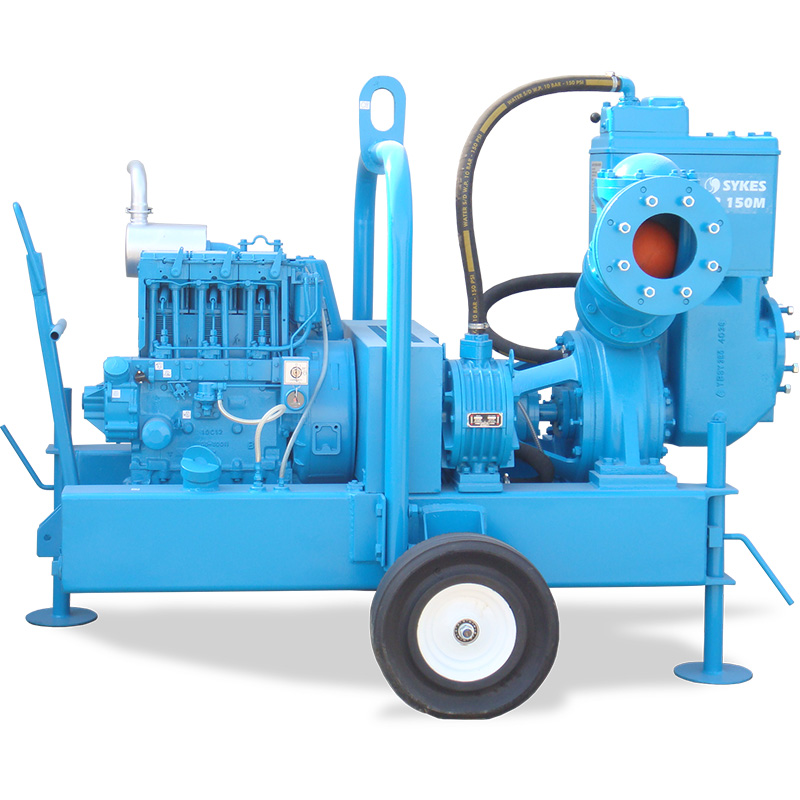

GP 150M General Purpose Pump Angle View Click image to Zoom

The GP 150M is the general purpose industry standard for Construction, Utilities and Civil Engineering. Used wherever there’s a need for positive self - priming, the GP 150M incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 150M, is powered by a 20kw Lister engine. All Andrews Sykes Hire Saudi General Purpose Pumps are available with alternative engines, motors and chassis configurations.

Get A Quote

Please enter your details. Items with a * are required.

Get A Quote

The GP 150M is the general purpose industry standard for Construction, Utilities and Civil Engineering. Used wherever there’s a need for positive self - priming, the GP 150M incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 150M, is powered by a 20kw Lister engine. All Andrews Sykes Hire Saudi General Purpose Pumps are available with alternative engines, motors and chassis configurations.

GP 150M General Purpose Pump Angle View Click image to Zoom

Key Features

  • Hours of unattended operationfor continuous use
  • Hard-wearing partsfor robust applications
  • Automatic priming and re-primingfor maximum efficiency
  • Compact and manoeuvrablefor simple redeployment
  • 52 mm solids handling
  • Electric startfor swift functionality
  • Economical operationfor greater fuel efficiency
  • Standard 4 wheeled site chassisfor swift delivery

Environments

  • Environmental
  • Emergency Pumping Services
  • Docks, Ports and Harbours
  • Refineries
  • Water and Waste Treatment
  • Local Authorities
  • Over-pumping
  • Offshore and Float Outs
  • Quarries and Mines
  • Building and Construction
  • Manufacture and Industry
  • Power Stations
  • Tunnelling
  • Construction projects

Accessories

  • 6" SPLIT INTAKE
  • 6" 10FT W/A SUCTION HOSE BAUER
  • 6" W/A SUCTION HOSE X 6MTS
  • 6" 20FT POLYTUBE
  • 6" X 6M HELIFLEX HOSE BAUER
  • 6" LAYFLAT HOSE PER METRE
  • 6" BLUE LAYFLAT X 25M CW BAUERS
  • 6" 10FT STEEL PIPE
  • 6" 20FT STEEL PIPE
  • 6" 45* BAUER BEND
  • 6" 90* BEND
  • 6" GATEVALVE
  • 6" NON RETURN VALVE
  • SETTLEMENT TANK
  • SYKES SILT AWAY
  • DRIP TRAY 2440MM X 1525MM
  • DRIP TRAY 2058MM X 1525MM
  • ROAD RAMP C/W 6" PN16 FLANGES
  • ROAD RAMP WIDE C/W 6" PN16 FLANGES
  • ROAD CROSSING C/W 8" PN16 FLANGES
  • BUNDED FUEL TANK 2800 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • 5M HP FUEL LINE

Specifications

Performance
Max head:- 38 m
Max flow:- 90 l/s
Max solid:- 52 m
Weight
1238 kg with fuel
1133 kg without fuel
Dimensions (L x W x H)
2100 x 1500 x 1635 mm
Typical length with tow bar 2780
Noise level
@ 1m = 94 - 98 dBA
@ 7m = 77 - 82 dBA
Fuel capacity
122 litres. Max 24 hours with cleaning and flushing facilities
Pipe connections
Suction:- 6" table D
Discharge:- 6" table D
Bauer couplings option:- 6"
Fuel Consumption
Full load @ 1800 rpm:- 6.27 litres/hour
Energy Efficient duty point
Fuel Consumption @ 1500 rpm:- 4.08 litres/hour
