GP 50/75 General Purpose Pump

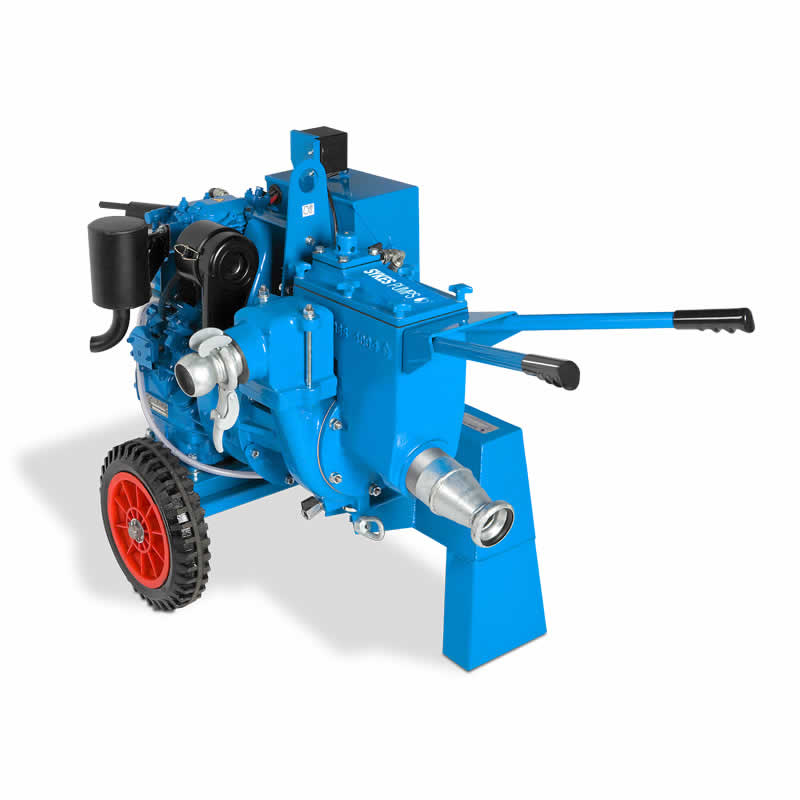

gp 5075 General Purpose Pump View Angle Click image to Zoom

The GP50/75 is the smallest general purpose pump in our expansive hire range but retains all the features of our larger GP units. This 2” pump can also be used as a 3” version and has been specifically designed to be a ‘first on site’ solution in the event of an emergency. Small, compact and robust, our GP50/75 unit is perfect for a multitude of environments including construction, utilities and civil engineering. The unit incorporates the unique Sykes Univac vacuum system and is capable of automatic priming and re-priming automatically from dry, maximising efficiency and reducing running costs.

Get A Quote

Please enter your details. Items with a * are required.

Get A Quote

The GP50/75 is the smallest general purpose pump in our expansive hire range but retains all the features of our larger GP units. This 2” pump can also be used as a 3” version and has been specifically designed to be a ‘first on site’ solution in the event of an emergency. Small, compact and robust, our GP50/75 unit is perfect for a multitude of environments including construction, utilities and civil engineering. The unit incorporates the unique Sykes Univac vacuum system and is capable of automatic priming and re-priming automatically from dry, maximising efficiency and reducing running costs.

gp 5075 General Purpose Pump View Angle Click image to Zoom

Key Features

  • Hours of unattended operationfor continuous use
  • Hard-wearing partsfor robust applications
  • Automatic priming and re-priming
  • Compact and manoeuvrablefor simple redeployment
  • 28 mm solids handling
  • Electric startfor swift functionality
  • Economical operationfor greater fuel efficiency
  • Available on a 2 wheeled site chassisfor swift delivery

Environments

  • Environmental
  • Emergency Pumping Services
  • Docks, Ports and Harbours
  • Refineries
  • Water and Waste Treatment
  • Local Authorities
  • Utilities
  • Quarries and Mines
  • Building and Construction
  • Manufacture and Industry
  • Power Stations
  • Tunnelling

Accessories

  • 2" SPLIT INTAKE
  • 2" 20FT W/A SUCTION HOSE BAUER
  • 2" X 6M HELIFLEX PVC BAUER HOSE
  • 2" LAYFLAT HOSE PER METRE
  • 2" BLUE LAYFLAT X 25M CW BAUERS
  • 2" BLUE LAYFLAT X 50M CW BAUERS
  • 2" 60* BEND
  • 2" GATEVALVE
  • 2" NON RETURN VALVE
  • RETAIL GAS OIL

Specifications

Weight
200 kg with fuel / 188 kg without fuel
Dimension
(LxWxH)mm, 1216x750x860
Noise level
Typical noise level at 1m = 90 - 97 dBA, Typical noise level at 7m = 73 - 80 dBA
Performance
Max head: 28 m / Max flow: 15 l/s / Max solid: 28 mm
Fuel Tank Capacity
14 litres. Max 24 hour with cleaning and flushing facilities
Fuel Consumption
Typical fuel consumption on full load @ 2500 rpm: 1.4 litres/hour
Chassis
2 wheel site trailer / high speed trailer / skid mounted
Pump Materials
Main pump: SG grade iron
Pipe Connections
Suction: 3" BSP Female thread, Discharge: 2" BSP Female thread, Bauer couplings option 2"
Engine(Type / Power / Speed)
Lister AD1 air cooled diesel engine developing 4.3 kW at 2500 rpm
Prime System
Rotary vacuum pump of nominal displacement 6 cfm incorporating non-return valve
Shaft Seal
Sykes patented Vacuum pressure seal, Single ring of packing, Spring loaded, No adjustments necessary, Easy repacking, Chrome oxide coating on wear ring
Health and Safety
Ear Defenders, Gloves, Boots/safety footwear / Protective clothing, Noise power level Lwa:106 dB
