GP 80 general purpose pump

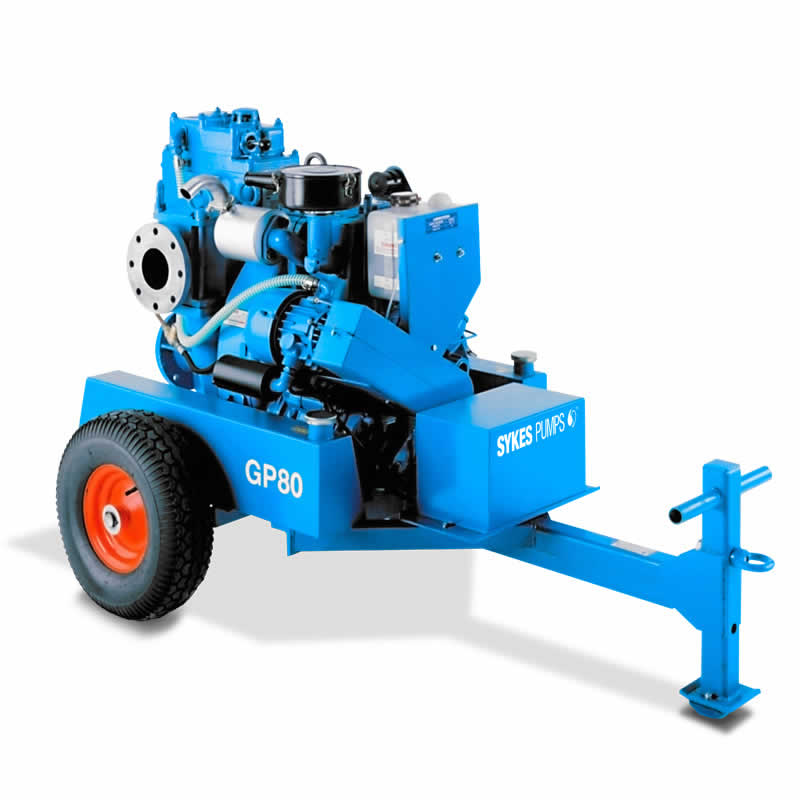

gp 80 general purpose pump Angle View Click image to Zoom

The GP 80 is typically a contractor’s general purpose pump capable of delivering flows up to 34 litres per second and a maximum head of 24 metres. Used wherever there’s a need for reliable automatic self-priming, the GP 80 incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 80 is powered by a 6.7kW Lister engine and is available on a robust 2 wheeled site chassis.

Get A Quote

Please enter your details. Items with a * are required.

Get A Quote

The GP 80 is typically a contractor’s general purpose pump capable of delivering flows up to 34 litres per second and a maximum head of 24 metres. Used wherever there’s a need for reliable automatic self-priming, the GP 80 incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 80 is powered by a 6.7kW Lister engine and is available on a robust 2 wheeled site chassis.

gp 80 general purpose pump Angle View Click image to Zoom

Key Features

  • Hours of unattended operationfor continuous use
  • Hard-wearing partsfor robust applications
  • Automatic priming and re-priming
  • Compact and manoeuvrablefor simple redeployment
  • 40 mm solids handling
  • Electric startfor swift functionality
  • Economical operationfor greater fuel efficiency
  • Standard open-set unit

Environments

  • Environmental
  • Emergency Pumping Services
  • Docks, Ports and Harbours
  • Refineries
  • Water and Waste Treatment
  • Local Authorities
  • Over-pumping
  • Offshore and Float Outs
  • Quarries and Mines
  • Building and Construction
  • Manufacture and Industry
  • Power Stations
  • Tunnelling
  • Construction projects

Accessories

  • 3" SPLIT INTAKE
  • 3" 20FT W/A SUCTION HOSE BAUER
  • 3" 20FT POLYTUBE
  • 3" X 6M HELIFLEX PVC BAUER HOSE
  • 3" LAYFLAT HOSE PER METRE
  • 3" BLUE LAYFLAT X 25M CW BAUERS
  • 3" 90* BEND
  • 3" GATEVALVE
  • 3" NON RETURN VALVE
  • BUNDED FUEL TANK 1000 LITRE
  • RETAIL GAS OIL
  • DRIP TRAY 2440MM X 1525MM
  • DRIP TRAY 2058MM X 1525MM
  • ROAD RAMP C/W 6" PN16 FLANGES
  • ROAD RAMP WIDE C/W 6" PN16 FLANGES

Specifications

Performance
Max head:- 24 m
Max flow:- 34 l/s
Max solid:- 40 mm
Weight
455 kg with fuel
425 kg without fuel
Dimensions (L x W x H)
1700 x 1190 x 1093 mm
Noise level
@ 1m = 95-98 dBA
@7m = 78 - 82 dBA
Fuel capacity
35 litres. Max 24 hours with cleaning and flushing facilities
Pipe connections
Suction:- 4" table D
Discharge:- 4" table D
Bauer couplings option:- 3"
Fuel Consumption
Full load @ 1800 rpm:- 1.9 litres/hour
Energy Efficient duty point
Fuel Consumption @ 1500 rpm:- duty point:- 0.61 litres/hour
