3H Jetting Pump

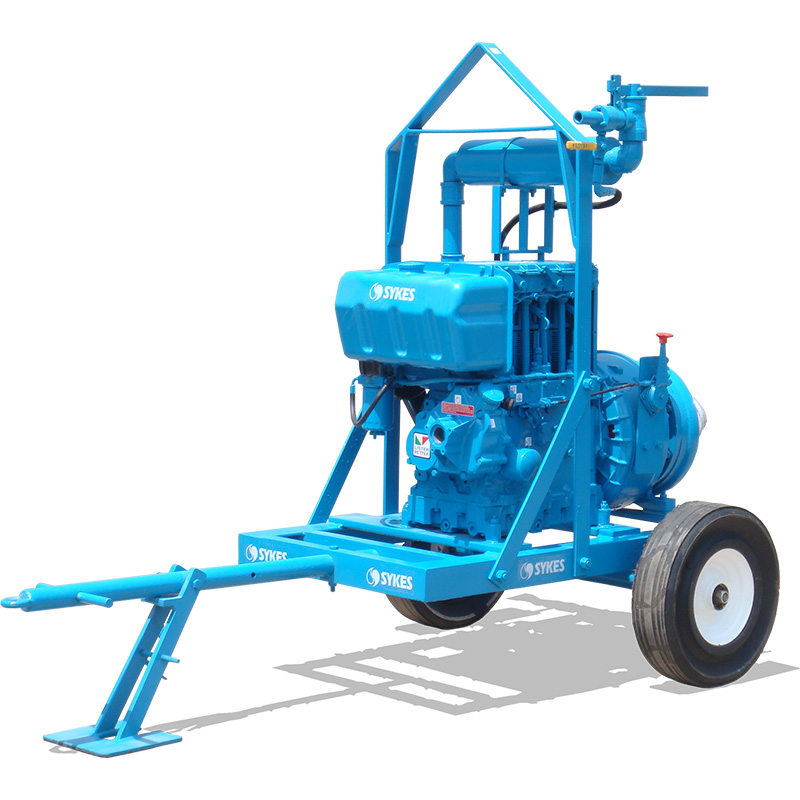

3H Jetting Pump Click image to Zoom

The Jetting Pump is an exhaust primed centrifugal pump with 75mm (3") suction and discharge connections. In standard form the pump is coupled to a Lister TR3 air cooled diesel engine and is mounted on two wheeled site trailer. Suitable for duties where high pressure is a priority such as wellpoint jetting, firefighting, jetting and extracting piling, bulkheads and sheeting, flushing and cleaning lock gates etc. Using an exhaust activated venturi system, the pump is able to prime at suction lifts down to 6m (20ft) within 40 seconds.

Get A Quote

Please enter your details. Items with a * are required.

Get A Quote

The Jetting Pump is an exhaust primed centrifugal pump with 75mm (3") suction and discharge connections. In standard form the pump is coupled to a Lister TR3 air cooled diesel engine and is mounted on two wheeled site trailer. Suitable for duties where high pressure is a priority such as wellpoint jetting, firefighting, jetting and extracting piling, bulkheads and sheeting, flushing and cleaning lock gates etc. Using an exhaust activated venturi system, the pump is able to prime at suction lifts down to 6m (20ft) within 40 seconds.

3H Jetting Pump Click image to Zoom

Key Features

  • Capable of a total head of over 100m (328ft)
  • Rapid self priming down to 6m (20ft)
  • Single stage, therefore not affected by problems associated with multi stage pumps
  • Light compact design, ideal for site manoeuvring
  • High Efficiency
  • Grease lubricated spring loaded mechanical seal
  • Corrosion resistant seal rings
  • Easy maintenance

Environments

  • Environmental
  • Emergency Pumping Services
  • Docks, Ports and Harbours
  • Refineries
  • Water and Waste Treatment
  • Local Authorities
  • Film Production and Events
  • Offshore and Float Outs
  • Quarries and Mines
  • Building and Construction
  • Manufacture and Industry
  • Power Stations
  • Tunnelling
  • Agriculture

Accessories

  • 2.5 INCH X 60FT JETTING HOSE
  • JETTING STRAINER
  • 4" X 3M W/A BAUER HOSE
  • 4" 20FT W/A SUCTION HOSE BAUER
  • 4" 20FT POLYTUBE
  • 4" X 6MTR STEEL BAUER PIPE
  • DRIP TRAY 2440MM X 1525MM
  • DRIP TRAY 2058MM X 1525MM
  • RETAIL GAS OIL
  • BUNDED FUEL TANK 1000 LITRE
  • BUNDED FUEL TANK 2000 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • 5M HP FUEL LINE

Specifications

Weight (kg)
457 kg without fuel
Dimension (mm)
2000 x 860 x 1400
Noise level
@1m= 94-98 dBA @7m= 77-82 dBA
Performance
Max head
Fuel Tank Capacity
90lts, maximum 24hr with cleaning and flushing facilities
Fuel Consumption
full load @2800 rpm, 6.2ltrs/hr
Chassis
2 wheeled site trailer
Pump Materials
Enclosed type Impeller for high efficiency, close grain Cast iron volute with 3” BS table D flanged adaptor
Pipe Connections
Suction
Engine
Lister TR3 air-cooled diesel engine
Prime System
Manually operated exhaust activated
Shaft Seal
Mechanical grease lubricated
