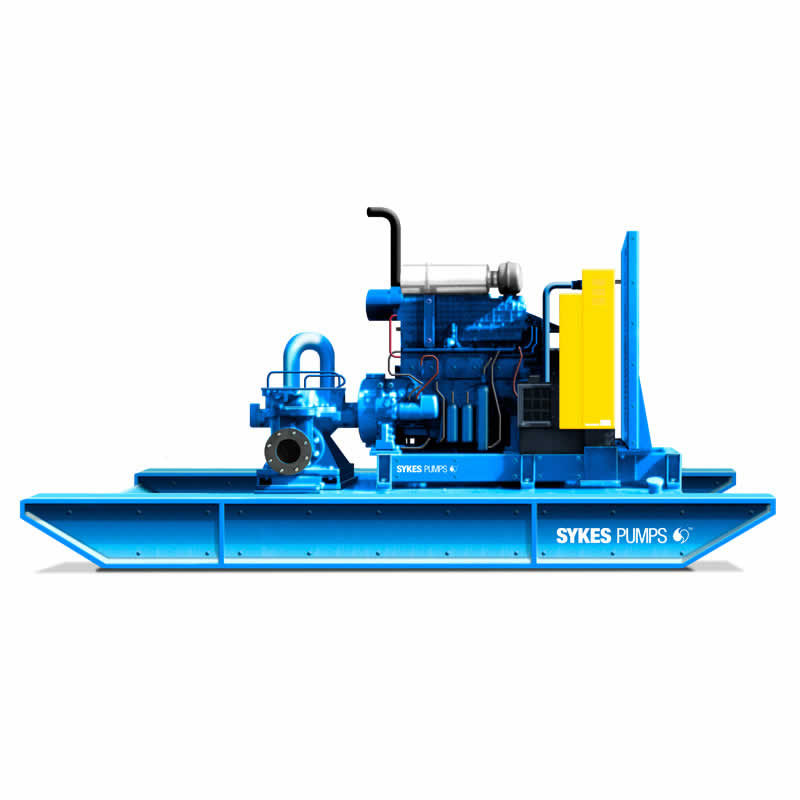

The DRC 150/150's highly efficient design ensures sustained performance at the lowest possible cost. The simplicity of construction with horizontal split casing, provides for total ease of maintenance, enabling the pump internals to be inspected without removing the drive or pipe work
Key Features
- High efficiency
- Low operating costs
- Easy maintenance
- 19.6 Bar working pressure
- Heave duty integral bearing
- Skid mounted
- Cast iron construction – twin stage horizontally split
Environments
- Water supplies
- Water boosting
- Pipeline filling
- Pipeline boosting
- Irrigation
- Wastewater
Accessories
- Pump fittings- intake fitting flange to bauer
- Pump fitting gasket
- Delivery hose assembly
- 3 metre (150 mm) wire armoured flexible delivery hose
- Typical weight 36.08 kg
- Typical working pressure 10 bar
- Hose Intake Assembly
Specifications
- Performance
- Max head:- 190 m
Max flow:- 118 l/s
Max solid:- Clean water - Weight
- 7250 kg with fuel
5135 kg wihtout fuel - Dimensions H x W x L (mm)
Typical length including tow bar - 2260 x 2385 x 5330
- Fuel tank capacity
- Tank size on application, separate bunded tanks available
- Fuel consumption
- Typical fuel consumption on full load @ 1800 rpm
- Chassis
- Skid mounted
- Pump materials
- Main pump
- Pump connections
- Suction:- 150 NP25
Discharge - Engine
Type / Power / Speed - Volvo TWD1210P / 265kW / 1800 rpm
- Prime system
- Hand Prime
- Shaft seal
- Easy repacking
Conventional stuffing box - Health and safety
- Ear defenders
Gloves
Boots/safety footwear
Protective clothing
