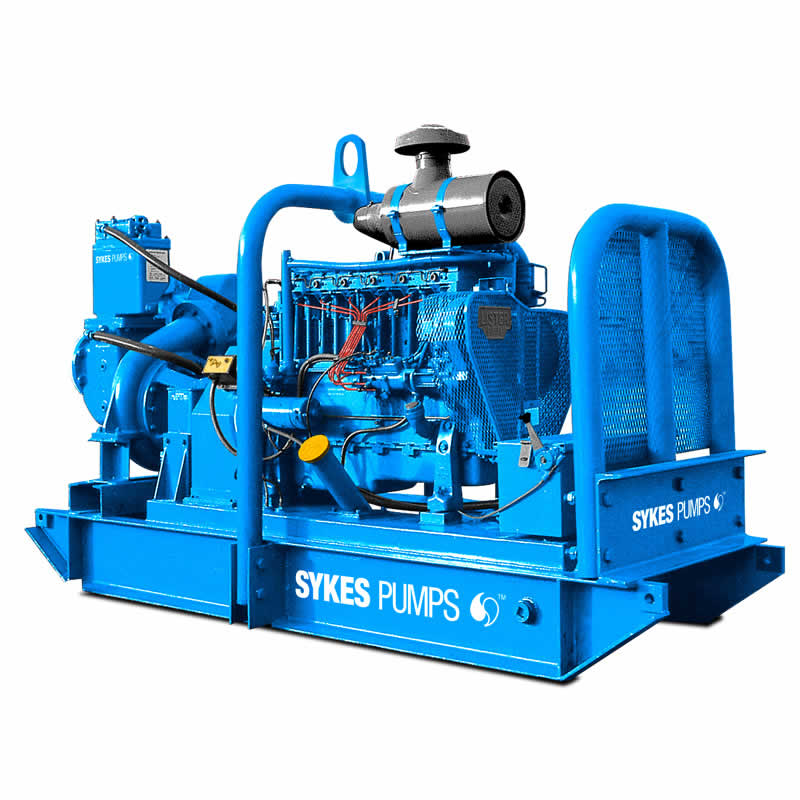

MH 150 Medium Head

The MH 150 is designed for all general purpose medium head applications and is ideally suited for open cast and quarrying applications. The carefully designed high efficiency impeller gives excellent head and flow characteristics coupled with the ability to handle some solids handling and is perfect for the most arduous applications

Key Features

Feature

Hard wearing cast iron construction

Hours of unattended operation

Corrosion resistant

Single point filter

Stainless steel impeller

Skid mounted

Easy maintenance

Automatic priming and re-priming

Product Specification

Weight :2125 kg with fuel / 1805 kg without fuel
Dimension (LxWxH) : 3100 x 1200 x 1800 mm
Performance :Max head: 91 m
Max flow: 144 l/s
Max solid: 25 mm
Fuel Tank Capacity :Max 24h running
Tank Capacity 375 litres
Cleaning and Flushing Facility
Fuel Consumption :Typical fuel consumption on full load @ 2000 rpm: 26 ltr/h
Chassis :Skid mounted
Pump Materials :Main pump: SG grade iron
Impeller: Stainless Steel
Pipe Connections :Suction: 8″ Table D,
Discharge: 6″ Table D,
Bauer Couplings Option
Engine (Type / Power / Speed) :Deutz BF6L913 / 86 kW / 2000 rpm,
Ford CDT6 / 109 kW / 2000 rpm
Prime System :Flood Lubricated Rotary Vacuum Pump / Nominal Displacement 60 cfm / Non Return Valve
Shaft Seal :Sykes patented vacuum pressure seal,
Single ring of packing,
Spring loaded,
No adjustments necessary,
Easy repacking,
Chrome oxide coating on wear ring
Health and Safety :Ear Defenders,
Gloves,
Boots,
Safety footwear,
Protective clothing

Downloads

Accessories

4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6MTR STEEL BAUER PIPE
4″ 45* FLANGED NP16
4″ 90*PLANGED NP16 BEND
4″ GATEVALVE
4″ NON RETURN VALVE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Clean and dirty water
Open cast mines
Heavy Sludge
Construction
Heavy Slurry
Waste water
Quarries

Get A Quote For MH 150 Medium Head

Fill in the form and we will call you back within 15 minutes (during office hours), or in the case of an emergency requirement, you can access our 24/7 call centre on +966 55 679 0905.

"*" indicates required fields

MH 150 Medium Head

Key Features

Hard wearing cast iron construction

Hours of unattended operation

Corrosion resistant

Single point filter

Stainless steel impeller

Skid mounted

Easy maintenance

Automatic priming and re-priming

Product Specification

Downloads

Accessories

Environments

Get A Quote For MH 150 Medium Head
