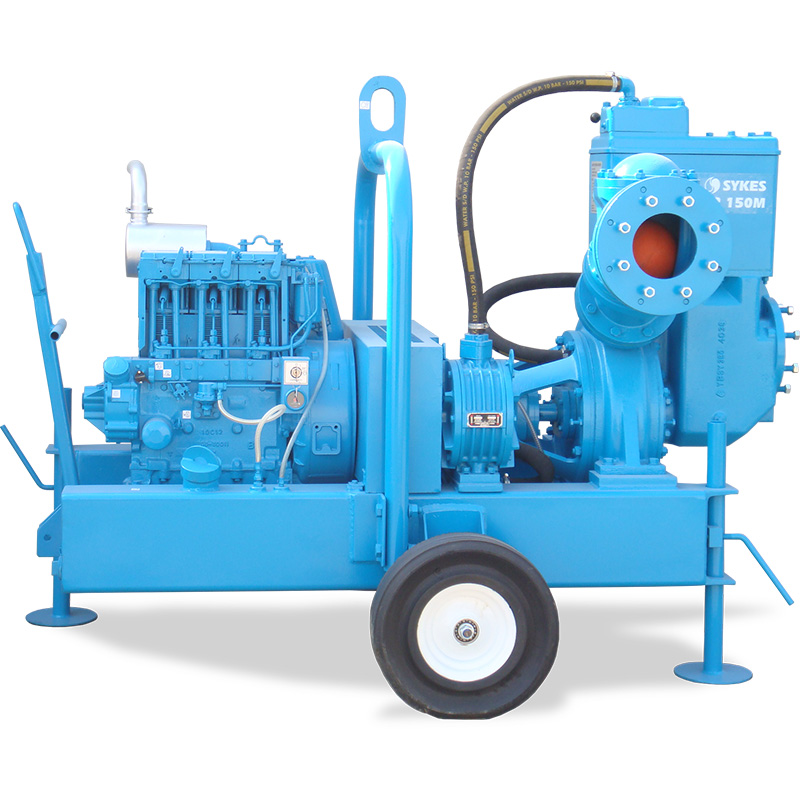

GP 150M General Purpose Pump

Name: GP 150M
Brand: Andrews Sykes Hire Saudi
SKU: ASAE-94-1
Price: 1 USD
Availability: InStock

The GP 150M is the general purpose industry standard for Construction, Utilities and Civil Engineering. Used wherever there’s a need for positive self – priming, the GP 150M incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 150M, is powered by a 20kw Lister engine. All Andrews Sykes Hire Saudi General Purpose Pumps are available with alternative engines, motors and chassis configurations.

Key Features

Feature

Hours of unattended operation

for continuous use

Hard-wearing parts

for robust applications

Automatic priming and re-priming

for maximum efficiency

Compact and manoeuvrable

for simple redeployment

Handling capability

52 mm solids

Electric start

for swift functionality

Economical operation

for greater fuel efficiency

Standard 4 wheeled site chassis

for swift delivery

Product Specification

Performance : Max head: 38 m
Max flow: 90 l/s
Max solid: 52 m
Weight : 1238 kg with fuel
1133 kg without fuel
Dimensions (L x W x H) : 2100 x 1500 x 1635 mm
Typical length with tow bar 2780 mm
Noise level : @ 1m = 94 – 98 dBA
@ 7m = 77 – 82 dBA
Fuel capacity : 122 litres. Max 24 hours with cleaning and flushing facilities
Pipe connections : Suction
Fuel Consumption : Full load @ 1800 rpm
Energy Efficient duty point : Fuel Consumption @ 1500 rpm

Downloads

Accessories

6″ SPLIT INTAKE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ 20FT POLYTUBE
6″ X 6M HELIFLEX HOSE BAUER
6″ LAYFLAT HOSE PER METRE
6″ BLUE LAYFLAT X 25M CW BAUERS
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ 45* BAUER BEND
6″ 90* BEND
6″ GATEVALVE
6″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Environmental
Emergency Pumping Services
Docks, Ports and Harbours
Refineries
Water and Waste Treatment
Local Authorities
Over-pumping
Offshore and Float Outs
Quarries and Mines
Building and Construction
Manufacture and Industry
Power Stations
Tunnelling
Construction projects
