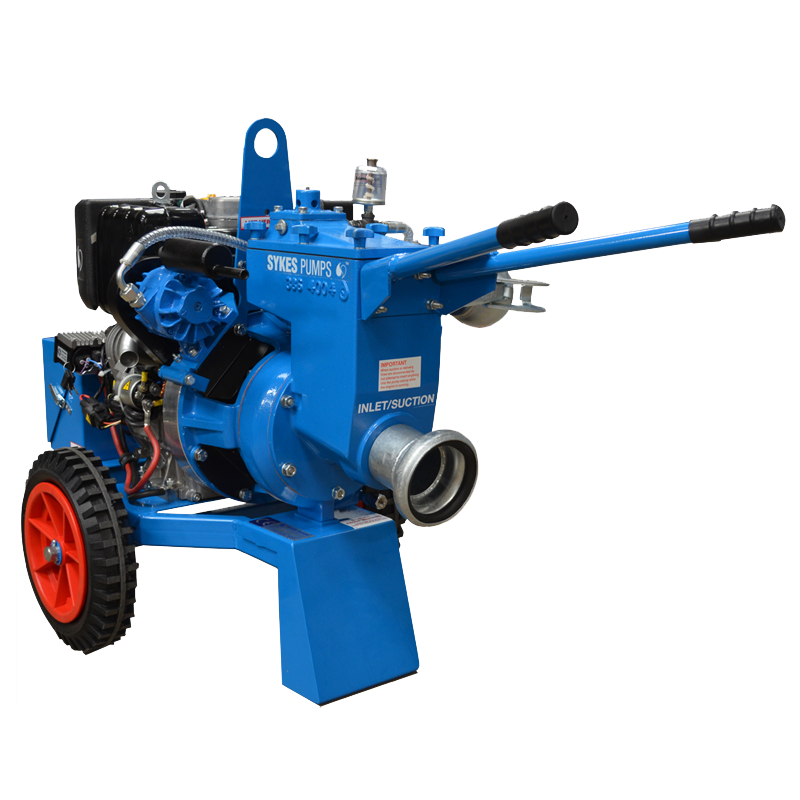

MINIVAC Eco General Purpose Pump

The MINIVAC eco pump set is the industry standard for contractors, construction, utilities and civil engineering. These robust pumps have been specifically designed for arduous applications and are capable of handling everything from clear water to the heaviest free flowing sludge and slurry. The unique Sykes Univac vacuum system enables the pump to prime and re-prime automatically from dry.

Key Features

Feature

Hard wearing cast Iron parts

Hours of unattended operation

Corrosion resistant

Automatic priming and re-priming

Available as a 2 wheeled trailer

Fuel efficient engine

Shaft seals can be changed in minutes

8 hour running on one tank of fuel?

Compact and manoeuvrable

Available as skid mounted

Electric motor option

Available as a high speed road trailer

Electric start

Choice of engines

Ease of maintenance

Solids handling up to 28 millimetres

Product Specification

Weight (kg) : 180kg with fuel / 168kg without fuel
Dimension (L x W x H) : 1350 x 600 x 840 mm
Noise level : @1m= 87-94 dBA / @7m= 70-77 dBA
Performance : Max head: 28 m
Max flow: 15 l/s
Max solid: 28 m
Fuel Tank Capacity : 5 litres. Max 8 hours running.
Fuel Consumption : Full Load @ 2000 rpm
Pipe Connections : Suction
Health and Safety : Ear Defenders,
Gloves,
Boots / safety footwear,
Protective clothing,
Noise power level Lwa: 122 dB
