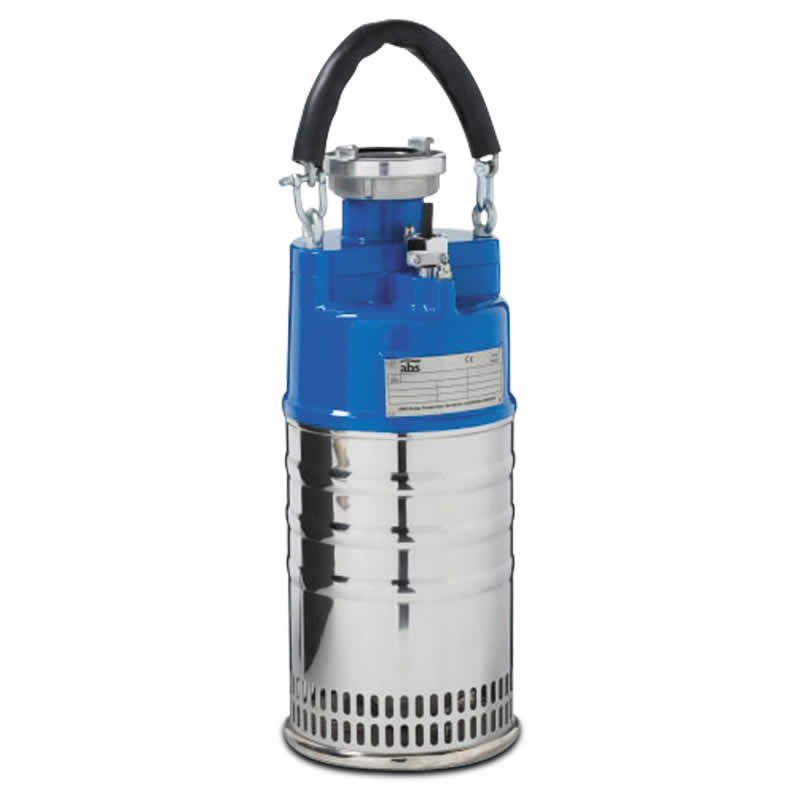

The new range of Sykes drainer submersible pumps are ideal for dewatering at all kinds of construction sites from the smallest building project right up to the biggest civil engineering contracts such as dams, bridges, construction, quarrying, tunneling and open cast mining. Their easy handling and excellent capacity make them ideal for ship yards, salvage brigades and many other industries and applications.
Key Features
- Stainless steel components
- High wear resistance
- Can run dry
- Easy portability
- Built in motor protection
- High head and high volume versions
- Highly reliable
- No vibration – smooth running
- Standardised deisgn for simple service and maintenance
- Simple installation
Environments
- Building site drainage
- General dewatering
- Effluent control
- Clean and dirty water pumping
- Tunnelling
- Nuisance water - stormwater
- Quarrying
- Mining
Specifications
- Model
- PC1001 N Medium Head / PC1001 N High HeadPC 1501 N Medium Head
- Motor Type
- 415V (3-Phase) 415 V (3-Phase)
- Motor Rating
- 2.2 kW 4.2 kW
- Max power input
- 3.0 kW 5.0 kW
- Running current
- 5.5 Amps 8.7 Amps
- Discharge Spigot
- 540 x 230 mm
- Dimensions (H x W)
- BSP 3” or Bauer 567 x 296 mm
- Weight (excl cable)
- 27 kg 36 kg
- Generator
- Min 10 kva / Rec 15 kva Min 15 kva Rec 20 kva
