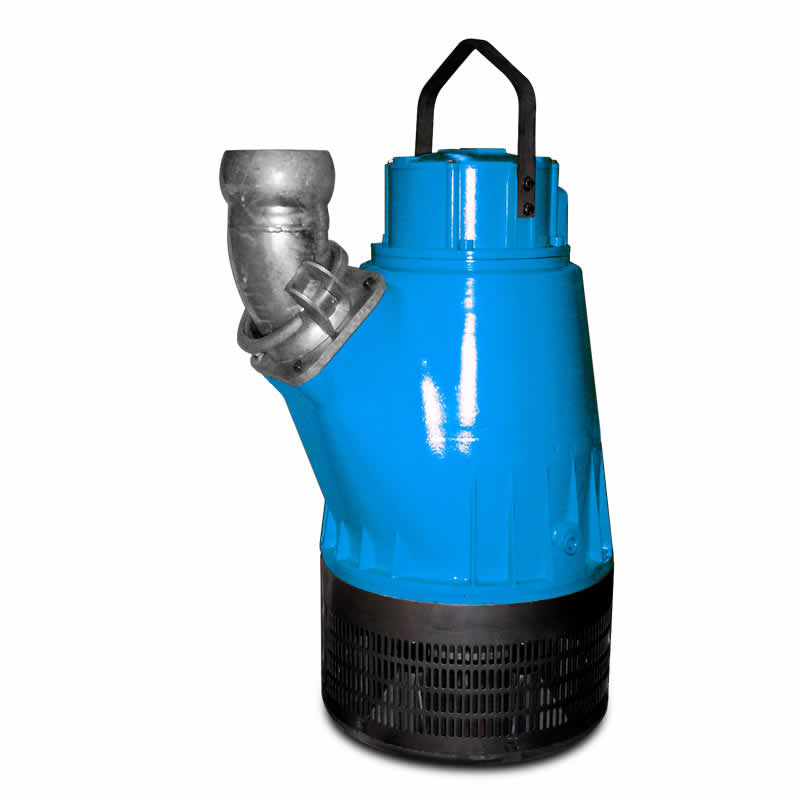

PX20 submersible drainer pump

The Andrews Sykes Hire Saudi PX20 Series submersible drainer pumps are designed for use on general dewatering applications. Ideal for moving nuisance water, they are commonly deployed in a broad range of environments e.g. construction, utilities, mines and quarries, shipyards, docks and industrial sites to ensure projects run to schedule. These 6”/8” pumps are available in either Medium or High Head versions with flow rates up to 160 L/sec and a maximum Head of 96 metres. Our PX20 units are very robust and are compatible for use with a 415V power supply. Low maintenance features enable trouble free uninterrupted use over long periods.

Key Features

Feature

Feature

Stainless steel components

High wear resistance

Can run dry

Easy portability

Built in motor

protection

High head and

high volume versions

Highly reliable

No vibration –

smooth running

Standardised deisgn for

simple service and maintenance

Simple installation

Product Specification

  • Model : PX20 N Medium Head / PX20 H High Head
  • Motor Type : 415V (3-Phase)
  • Motor Rating : 40.0 kW
  • Max power input : 44.0 kW
  • Running current : 72 Amps
  • Discharge Spigot : 915 x 570 mm
  • Dimensions (H x W) : 4” (PX 20H) 6”,8” G 4”,6” or Bauer
  • Weight (excl cable) : 270 kg
  • Generator : 100 kva

Environments

  • Building site drainage
  • General dewatering
  • Effluent control
  • Clean and dirty water pumping
  • Tunnelling
  • Nuisance water – stormwater
  • Quarrying
  • Mining
