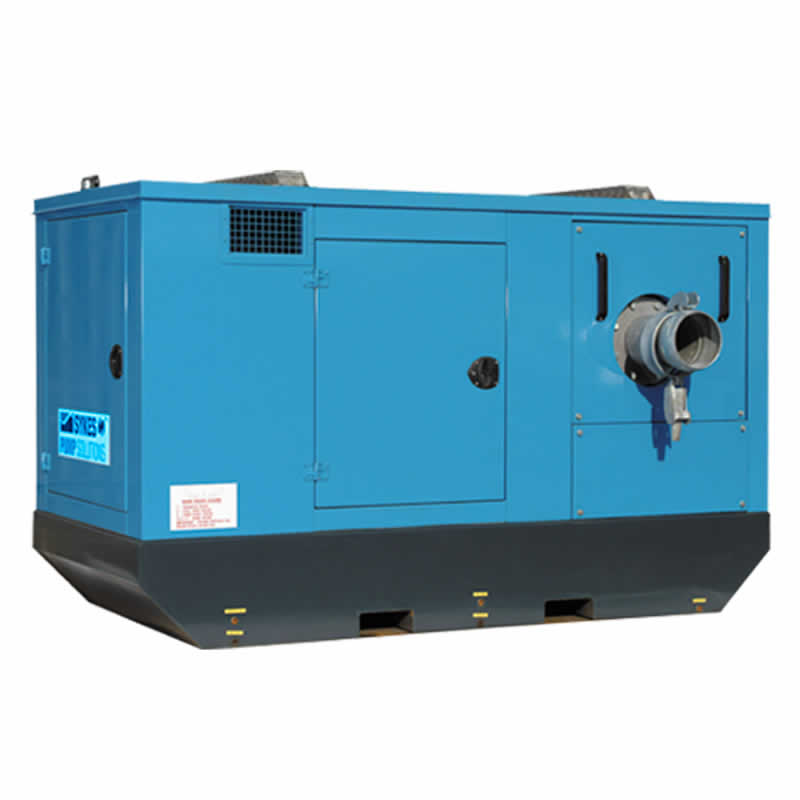

SUPER WISPASET 200 Super Silenced Pump

The Super Wispaset 200 pump will deliver a flow rate of 580m³ per hour and is one of the quietest pumps on the market with a maximum noise level of 65dBA @ 7m. The Super Wispaset 200’s most innovative feature is its optional Telemetry, allowing remote monitoring, removing the need for unnecessary and costly visits by engineers.

Key Features

Feature

Reduced typical noise

levels 66 dBA @ 7m

Oil pressure shut

down

Optional Telemetry

Lifting eye security

Low cost operation

Oil mist filter

24 hour running

Optional high level

bund alarm

Stackable (optional)

Optional low fuel

warning

Skid and fast

tow units

Temperature shut down

Engine options

Product Specification

Weight :2390 kg with fuel, 2200 kg without fuel
Dimension (L x W x H) :2610 x 1250 x 1535 mm
Control :Optional Auto stop start
Optional telematery
Optional shutdowns
Noise level :Typical noise level at 7m = 65 dBA
Performance :Max head: 43 m
Max flow: 161 l/s
Max solid: 75 mm
Fuel Tank Capacity :207 litres. Max 24h running
Fuel Consumption :Typical fuel consumption on full load @ 1800 rpm: 17 litres/hour
Chassis :High speed trailer
Skid mounted
Fork Lift slots
Fully Bunded
Canopy :Metalised soundabsorbing Canopy
Zintec coating on all surfaces
Pump Materials :Main pump: SG grade iron
Pipe Connections :Suction: 8″ Table D, Discharge: 8″ Table D, Bauer couplings option
Engine(Type / Power / Speed) :Iveco 8045SE / 62 kW / 1800 rpm,
Iveco A800N45MSS / 62 kW / 1800 rpm
Prime System :Flood Lubricated Rotary Vacuum Pump/ Nominal Displacement 25 cfm/ Non Return Valve
Shaft Seal :Sykes patented Vacuum pressure seal,
Single ring of packing,
Spring loaded,
No adjustments necessary,
Easy repacking,
Chrome oxide coating on
Health and Safety :Gloves
Boots/safety footwear
Protective clothing
Noise power level Lwa: 90 dB

Downloads

Accessories

8″ INTAKE
8″ 3M W/A BAUER HOSE
8″ X 6M POLYTUBE BAUER DELIVERY
8″ 20FT STEEL PIPE
8″ 45* BAUER BEND
8″ 90* BEND
8″ GATEVALVE
8″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
RETAIL GAS OIL

Environments

Clean and dirty water
Emergency sewer repairs
Sludge
Utilities
Slurry
Quarries
Over pumping
Civil engineering
Site dewatering
Waste water
