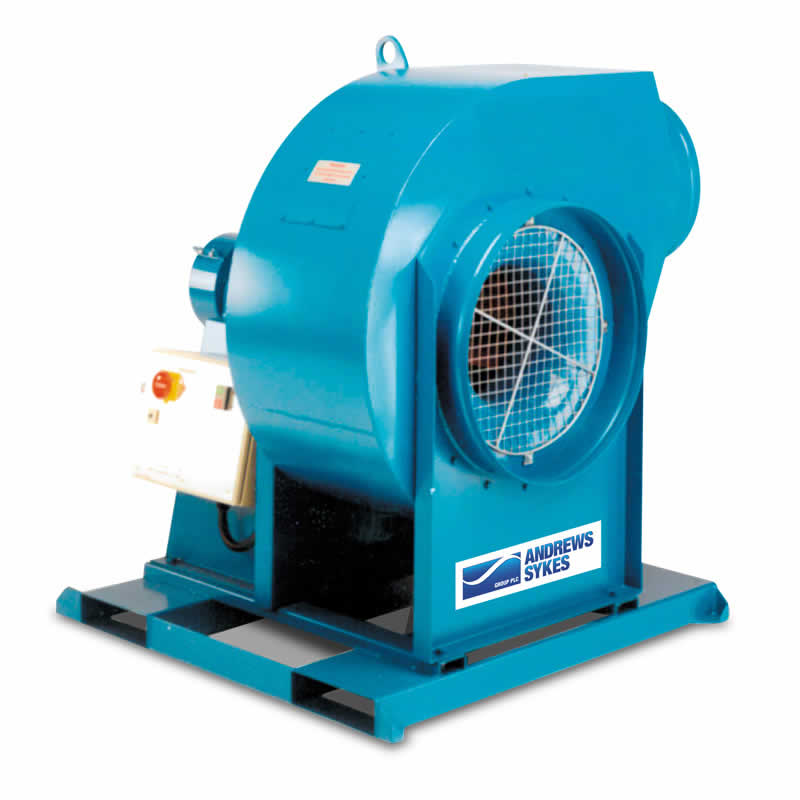

FV600 ventilation extraction fan

The FV600 Ventilation/extraction fan is a robust high powered fan, used with ducting for the removal of dangerous fumes, dust particles and vapours. The FV600 has a maximum-ducted length of 40mtr and can be linked to Heaters, Boilers and Chillers to distribute warm or cool air over large areas. This unit requires a 450v 3ph power supply.

Key Features

Feature

Safe and easy

to use

Robust construction

Easy installation

Quiet operation

Powerful air handling

Economical

Fully portable

Very reliable

Product Specification

Power supply :415 V 3 ph 50 Hz +E Run 6 A
Plug type :BS4343 5 pin 16 A 415 V
Generator size :20 kVA
Duct size :Inlet 600 mm Outlet 450
Noise level (max) :83 dBA @ 1 metre
Average power consumption :4.25 kW/hr
Weight :245 kg
Dimension :1,115 x 1,115 x 1,350 mm
Control :Manual

Downloads

Environments

Removal of welding fumes
Demolition
Tank cleaning
Agriculture
Sewer maintenance
Digging of polluted ground
Tunnel construction
Construction
Painting

Get A Quote For FV600 ventilation extraction fan

Fill in the form and we will call you back within 15 minutes (during office hours), or in the case of an emergency requirement, you can access our 24/7 call centre on +966 55 679 0905.
