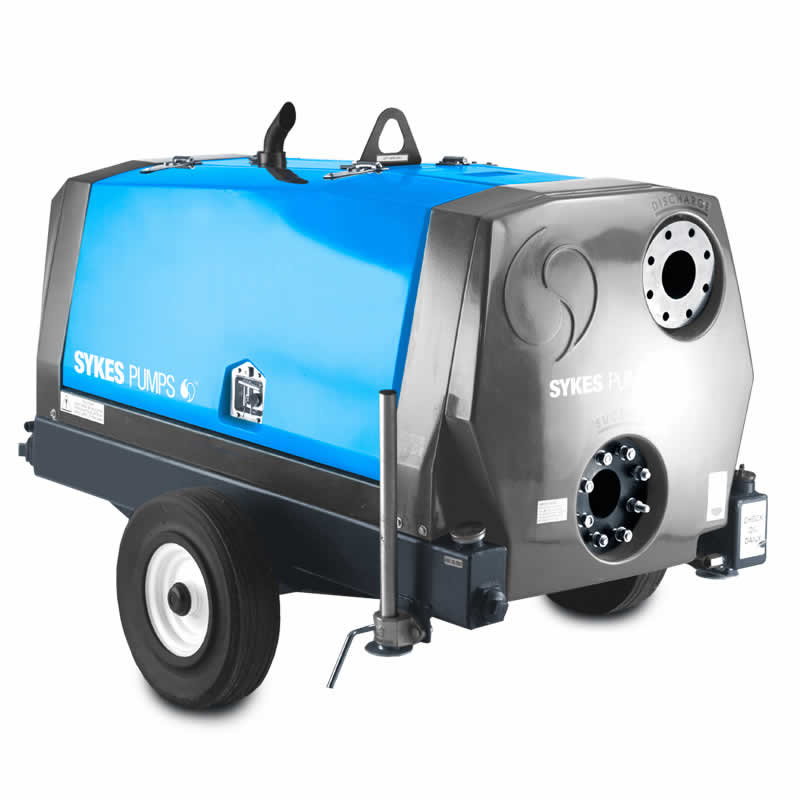

WISPASET 80 Silenced Pump

The Wispaset 80 can operate night and day without damaging the environment. These economic, efficient and environmentally friendly pumps meet the most stringent European and Global noise regulations and are manufactured to the highest quality standards.

Key Features

Feature

Reduced typical noise

levels 70 dBA @ 7m

Lower inlet and

discharge connections

Low cost operation

Easy maintenance

GRP and steel

construction

Fully enclosed

Site and high

speed trailer versions

Environmentally friendly

Improved pump priming

Product Specification

Weight :742 kg with fuel / 695 kg without fuel
Dimension :(LxWxH)mm: 2056x1350x1090
Noise level :Typical noise level at 1m = 85 – 87 dBA, Typical noise level at 7m = 68 – 70 dBA
Performance :Max head: 22 m / Max flow: 40 l/s / Max solid: 50 mm
Fuel Tank Capacity :Tank Capacity 55 litres cleaning and flushing
Fuel Consumption :Typical fuel consumption on full load @ 2000 rpm: 2.9 litres/hour
Chassis :2 wheel site trailer / High speed trailer / Skid mounted
Canopy :Unique ”airflow” grp canopy
Pump Materials :Main pump: SG grade iron
Pipe Connections :Suction: 100mm NP10, Discharge: 100mm NP10, Bauer couplings option 3″
Engine(Type / Power / Speed) :Lister LPW2 / 9.2 kW / 2000 rpm
Prime System :Flood Lubricated Rotary Vacuum Pump / Nominal Displacement 25 cfm / Non Return Valve
Shaft Seal :Sykes patented Vacuum pressure seal, Single ring of packing, Spring loaded, No adjustments necessary, Easy repacking, Chrome oxide coating on wear ring
Health and Safety :Gloves / Boots/safety footwear / Protective clothing, Noise power level Lwa: 94 dB

Downloads

Environments

Clean and dirty water
Utilities
Sludge
Water authorities
Slurry
Quarries
Over pumping
Construction
Site dewatering
Civil engineering
Emergency sewer repairs
Waste water
