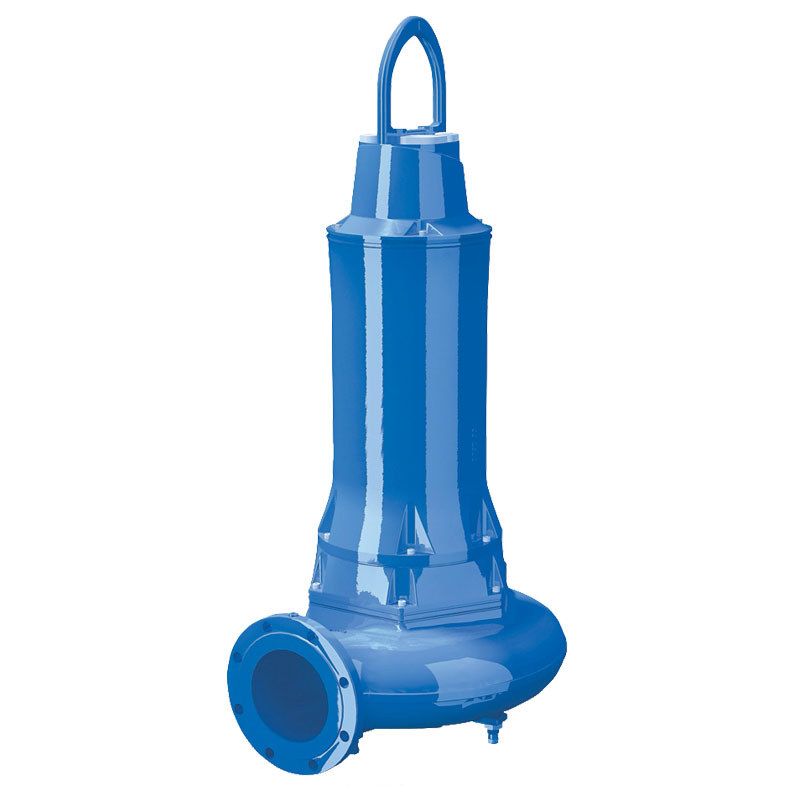

XFP301M CH2.473 Submersible Wastewater Pump

Text For commercial, industrial, infrastructure and utility applications this robust solids handling pump is ideal where high reliability and performance are essential. With a powerful 75kW 415V motor this pump is great for dealing with sustained flows in commercial, industrial pumping stations or utility networks.

Key Features

Feature

Cast iron body

Cast Iron impeller

High wear resistance

Highly reliable

No vibration

smooth running

Built in motor

temperature sensors

12” Discharge

Standardized design for

minimal service and maintenance

Premium Efficiency

IE3 motor

Simple installation

Motor

415 V, 75 kW

Low noise and

no fumes

Max Head

36 metres

Max Flow

430 litres/sec

Available for use

in Ex Zone 2 environments

Product Specification

Weight : 1470 kg
Dimensions (mm) : Guide rail: 1995 x 1095 mm
Motor Type (V) : 415 (50 Hz)
Motor Rating : 75 kW
Max Power Input : 80 kW
Running Current : 140 Amps
Discharge Spigots : 12” Bauer
Cable termination : Tails, lugs
Cable length : 20 m

Downloads

Accessories

VARIABLE SPEED DRIVE PANEL 6841075
12″ W/A SUCTION HOSE X 6MTS
12″ 10FT STEEL PIPE
12″ FLANGED HIGH PRESSURE HOSE X 6MTS
12″ 45* BAUER BEND
12″ 90* BAUER BEND
12″ FLANGED 45* BEND
12″ FLANGED 90* BEND
12″ GATEVALVE
12″ NON RETURN VALVE

Environments

Bypass and over-pumping
Emergency Sewage pumping
Wastewater treatment sites
Wastewater pumping networks
Tunnelling
Flood restoration
Manufacturing and Industry
Industrial processes
Commercial premises
Food, fruit and Vegetable preparation processes
Agriculture
Utility industries
