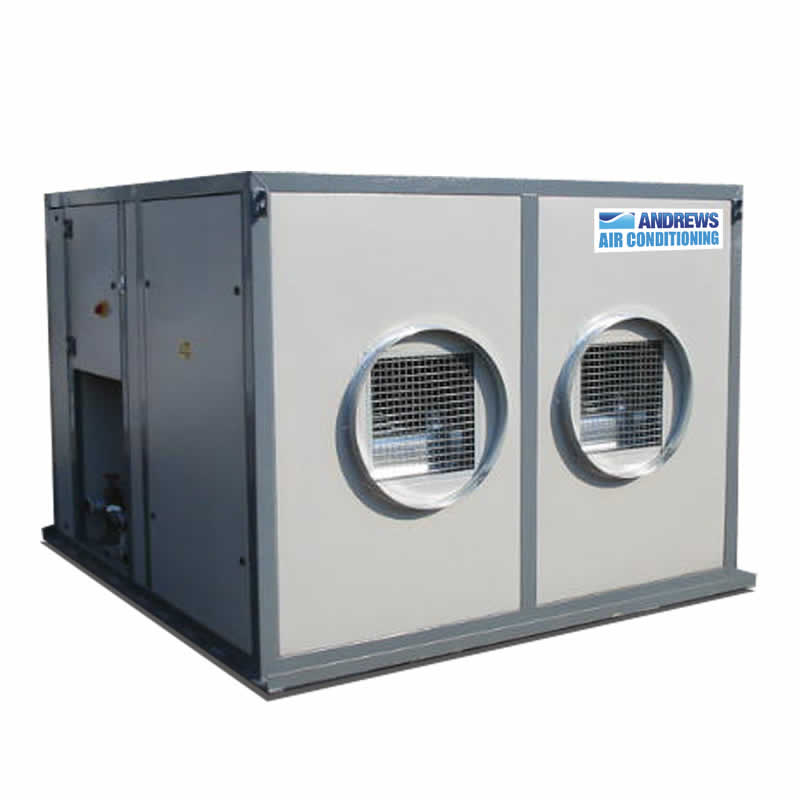

150/300kW Boiler Air Handler

150 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with fan speed controllers and internal condensate pumps.

Key Features

Feature

Safe and easy

to use

Economical

Fully portable

Very reliable

Robust construction

Quiet operation

Fully automatic operation

Product Specification

Power supply :415 V 3 ph 50 Hz N+E Run 20 A/hr
Noise level (max) :84 dBA @ 1 metre
Plug type :BS4343 5 Pin 32 A
Duct length (max) :50 metres
Duct size :2 x 600 mm
Nominal cooling capacity :150 kW 511,800 btu
Nominal heating capacity :300 kW 1,023,600 btu
Weight :934 kg
Dimension :2,260 x 1,980 x 1,700 mm

Downloads

Environments

Food preparation areas
Shops
Cold storage facilities
Marquees
Offices
Events and Exhibitions
Computer rooms
Archives
Temporary accommodation
