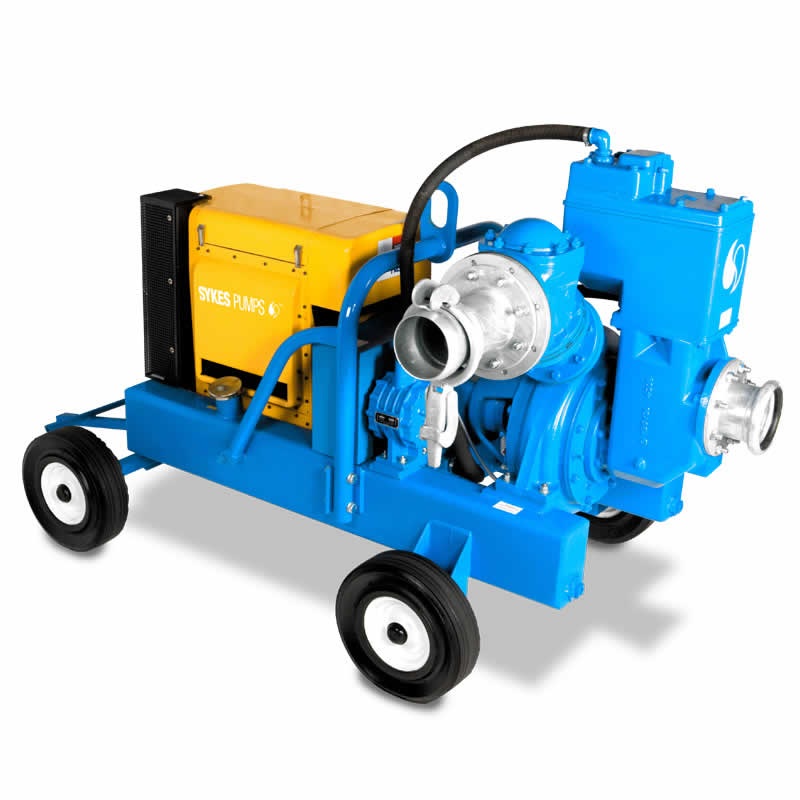

GP 150M HATZ Silenced Pump

The GP 150M HATZ silenced pump has been developed from the GP 150M HATZ heavy duty positive self priming pump. With its fully silenced Hatz diesel engine, the GP 150M HATZ can be used where noise levels are a concern.

Key Features

Feature

Reduced noise levels

73 dBA @ 7m

Hours of unattended

operation

Hard wearing cast

Iron parts

Silenced diesel engine

Corrosion resistant

Improved emission levels

Easy maintenance

Full electric start

Product Specification

Weight :Without fuel 1325 kg, With fuel 1430 kg
Dimension :(LxWxH)mm: 2100x1500x1635, typical length including tow bar 2780mm
Noise level :Typical noise level at 1 m = 90 – 94 dBA, Typical noise level at 7 m = 73 – 77 dBA
Performance :Max head: 38.0 m / Max flow: 90.0 l/s / Max solid: 52 mm
Fuel Tank Capacity :122 litres. Max 24 hour with cleaning and flushing facilities
Fuel Consumption :Typical fuel consumption on full load @ 1800 rpm: 6 litres/hour
Chassis :4 wheel site trailer
Pump Materials :Main pump: SG grade iron
Pipe Connections :Suction: 6″ Table D, Discharge: 6″ Table D, Optional Bauer Couplings 6″
Engine(Type / Power / Speed) :Hatz 3L41C silenced diesel engine 28.0 kW at 1800 rpm
Prime System :Flood Lubricated Rotary Vacuum Pump/ Nominal Displacement 60 cfm/ Non Return Valve
Shaft Seal :Sykes patented vacuum pressure seal, Single ring of packing, Spring loaded, No adjustments necessary, Easy repacking, Chrome oxide coating on wear ring, Optional mechanical seal
Health and Safety :Gloves, Boots/safety footwear, Protective clothing, Noise power level Lwa: 102 dB

Downloads

Environments

Clean and dirty water
Emergency sewer repairs
Sludge
Utilities
Slurry
Quarries
Over pumping
Civil engineering
Site dewatering
Waste water

Get A Quote For GP 150M HATZ Silenced Pump

Fill in the form and we will call you back within 15 minutes (during office hours), or in the case of an emergency requirement, you can access our 24/7 call centre on +966 55 679 0905.
